Lesson 1: Overview of PostgreSQL High Availability

Overview of PostgreSQL High Availability

Learning Objectives

After this lesson, you will:

• Understand why High Availability (HA) is important for database systems
• Master different HA deployment methods for PostgreSQL
• Compare the advantages and disadvantages of Patroni, Repmgr and Pacemaker
• Understand the overall architecture of PostgreSQL HA systems

1. Why do we need High Availability?

1.1. Problems with Single Point of Failure (SPOF)

In a traditional single-server database system:

Single Point of Failure (SPOF)

Consequences when database server fails:

• Downtime: Applications cannot access data
• Revenue loss: Each minute of downtime can result in significant revenue loss
• Loss of reputation: Users cannot use the service
• Data loss: If there is no timely backup

1.2. Common causes of downtime

1.3. What is High Availability?

High Availability (HA) is the ability of a system to maintain continuous operation even when one or more components fail.

HA measurement metrics:

1.4. Benefits of HA

Business Benefits:

• Minimize downtime and revenue loss
• Increase system reliability
• Improve user experience
• Meet SLA (Service Level Agreement)

Technical Benefits:

• Automatic failover when primary server fails
• Zero-downtime maintenance
• Load balancing for read queries
• Disaster recovery
• Data protection

2. PostgreSQL HA Methods

2.1. Log-Shipping (WAL Shipping)

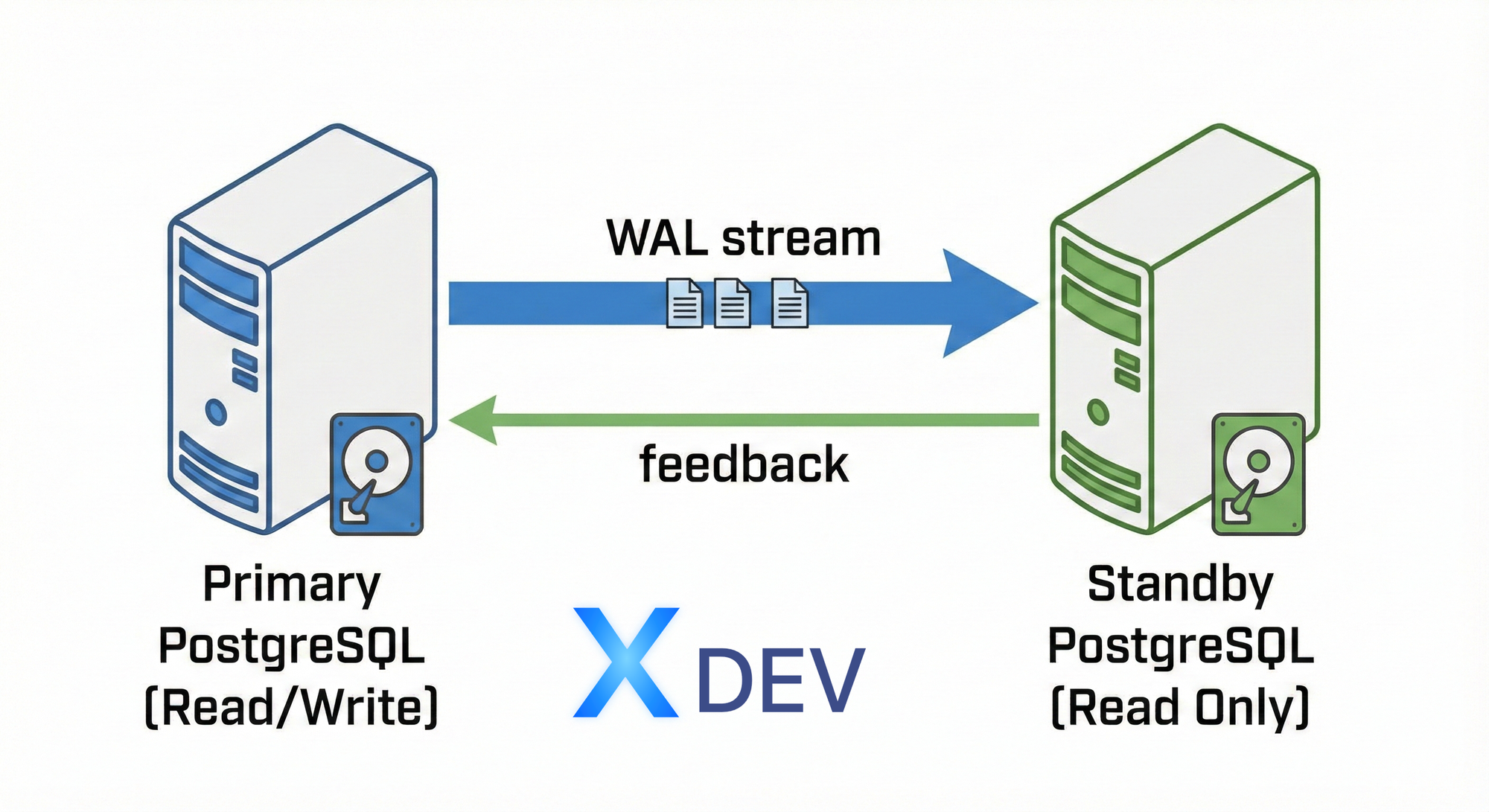

Log-Shipping (WAL Shipping)

How it works:

• Primary server writes WAL (Write-Ahead Log) files
• WAL files are copied to standby server
• Standby server replays WAL to synchronize data

Advantages:

• Simple, easy setup
• Low resource consumption

Disadvantages:

• High Recovery Time Objective (RTO) (minutes → hours)
• No automatic failover
• Data loss may occur
• Standby cannot query (warm standby)

2.2. Streaming Replication

How it works:

• Primary streams WAL records in real-time to standby
• Standby applies changes immediately
• Standby can serve read queries (hot standby)

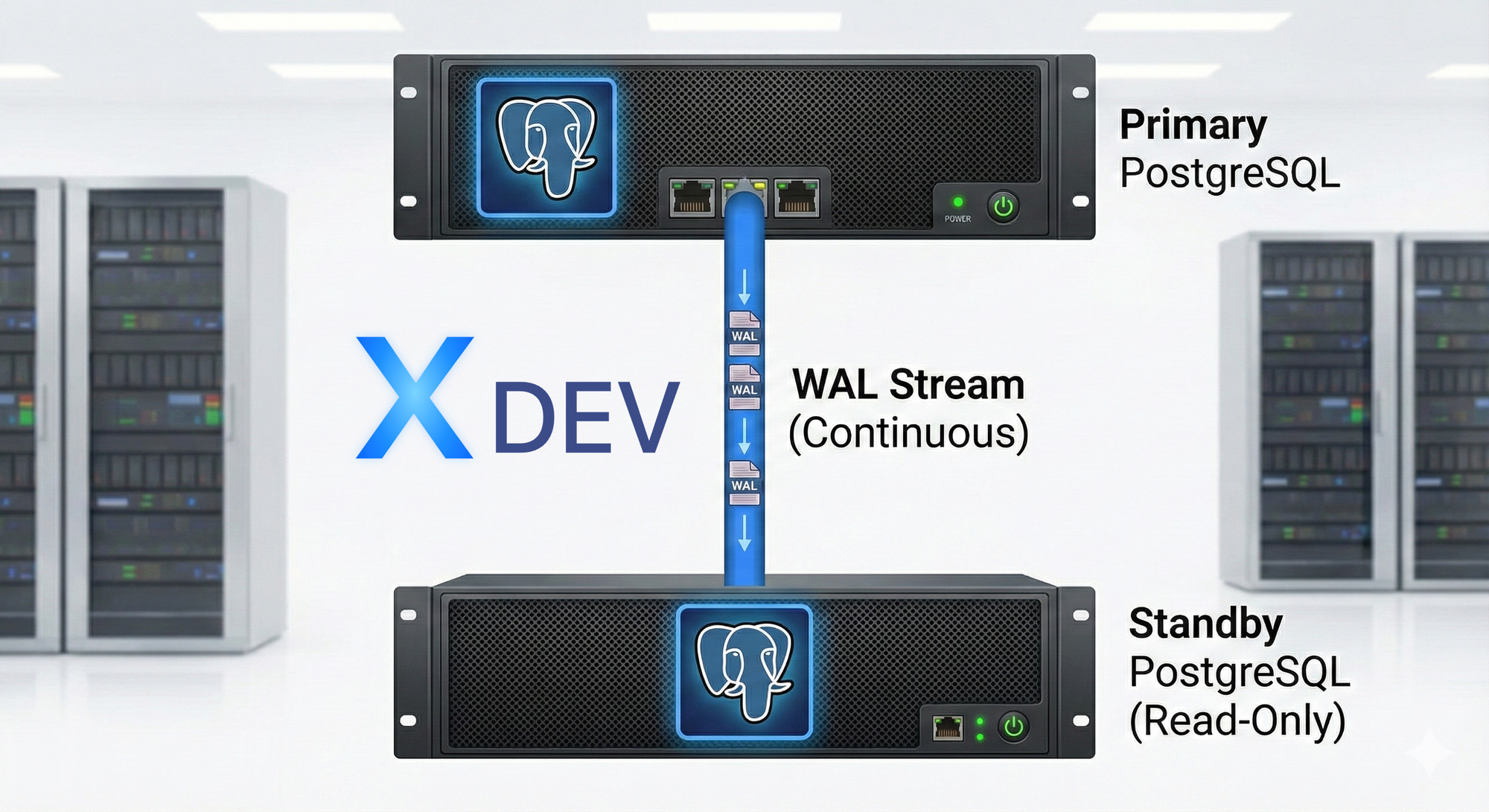

Log-Shipping (WAL Shipping)

Advantages:

• Low latency (< 1 second)
• Hot standby can serve read queries
• Synchronous mode reduces data loss

Disadvantages:

• Still requires manual failover
• Needs external tools for automation

2.3. Logical Replication

How it works:

• Replicate at logical level (tables, rows)
• Allows selective data replication
• Publisher → Subscriber model

Advantages:

• Replication between different PostgreSQL versions
• Selective replication (only certain tables)
• Multi-master possible (with BDR)

Disadvantages:

• Higher overhead than physical replication
• Not the main HA solution (usually used for data distribution)

2.4. Shared Storage (SAN)

Shared Storage (SAN)

Advantages:

• Fast failover (just start PostgreSQL)
• No data loss

Disadvantages:

• Expensive (needs SAN infrastructure)
• SAN becomes single point of failure
• Complex to maintain

3. Comparison: Patroni vs Repmgr vs Pacemaker

3.1. Patroni

Characteristics:

• Python-based
• Uses DCS (etcd, Consul, ZooKeeper) to store cluster state
• REST API for management
• Intelligent automatic failover
• Template-based configuration

Advantages:

• ✅ Easy to install and configure
• ✅ Powerful REST API
• ✅ Good Kubernetes integration
• ✅ Active development, large community
• ✅ Automatic leader election
• ✅ Rolling restart, zero-downtime updates

Disadvantages:

• ❌ Depends on DCS (adds component)
• ❌ Need to learn DCS (etcd/Consul)

Suitable use cases:

• Cloud-native applications
• Kubernetes deployments
• Microservices architecture
• High automation needs

3.2. Repmgr

Characteristics:

• Open-source tool from 2ndQuadrant (EnterpriseDB)
• Standalone tool, no DCS required
• Witness node for quorum voting
• Command-line based management

Advantages:

• ✅ No external DCS needed
• ✅ Simpler than Patroni
• ✅ Good documentation
• ✅ Mature and stable

Disadvantages:

• ❌ Fewer automation features than Patroni
• ❌ No REST API
• ❌ Smaller community
• ❌ More complex failover

Suitable use cases:

• Traditional infrastructure
• Simple, few nodes
• Don't want to add DCS

3.3. Pacemaker + Corosync

Characteristics:

• High Availability cluster framework (Linux-HA)
• Manages multiple types of resources, not just PostgreSQL
• Voting quorum mechanism
• Fencing/STONITH to avoid split-brain

Advantages:

• ✅ Mature, production-proven (20+ years)
• ✅ Manages multiple services (PostgreSQL, web server, etc.)
• ✅ Strong fencing mechanism
• ✅ Supports shared storage

Disadvantages:

• ❌ Very complex to setup and maintain
• ❌ High learning curve
• ❌ XML configuration difficult to read
• ❌ Difficult debugging

Suitable use cases:

• Enterprise environment
• Need to manage multiple services
• Has shared storage (SAN)
• Team has Pacemaker experience

3.4. Overall comparison table

3.5. Recommendations

Choose Patroni if:

• Deploying on cloud or Kubernetes
• Need automation and REST API
• Team has experience with modern DevOps tools
• ✅ This is the most popular choice today

Choose Repmgr if:

• Simple setup, few nodes (2-3)
• Don't want DCS dependency
• Team familiar with traditional PostgreSQL tools

Choose Pacemaker if:

• Complex enterprise environment
• Already has Pacemaker infrastructure
• Need to manage multiple services at once
• Has shared storage (SAN)

4. Overall System Architecture Patroni + etcd

4.1. 3-node cluster architecture

Overall System Architecture Patroni + etcd

4.2. Main components

PostgreSQL

• Main database engine
• One node is Leader (read/write)
• Other nodes are Replicas (read-only)
• Uses Streaming Replication to synchronize

Patroni

• Manages PostgreSQL lifecycle
• Monitors node health
• Performs automatic failover
• Exposes REST API (
  ) to query cluster state
• Reads/writes configuration to DCS

etcd (DCS - Distributed Configuration Store)

• Stores cluster state and configuration
• Leader election (decides which node is Leader)
• Distributed lock mechanism
• 3 etcd nodes form a quorum (majority voting)

HAProxy (optional but recommended)

• Load balancer
• Route write traffic → Leader
• Route read traffic → Replicas (round-robin)
• Health check and automatic routing when failover occurs

4.3. Operation flow

1. Normal Operations (Normal state)

1. Application sends query → HAProxy
2. HAProxy checks health check
3. Route write → Leader, read → Replicas
4. Patroni on each node:
   - Send heartbeat to etcd every 10s
   - Update health status
   - Maintain leader lease

2. Leader Failure Detection

1. Node 1 (Leader) fails → stop heartbeat
2. etcd detects: leader lease expired (30s)
3. Patroni on Node 2 and Node 3 realizes
4. Leader election is triggered

3. Automatic Failover Process

Timeline: 0s  ──────────► 30s ──────► 45s ──────► 60s
          │              │           │            │
      Leader dies    etcd detects  New leader  Applications
                     lease expire   elected     reconnect
                                   (Node 2)

Node 1:   LEADER ──────► DOWN ──────────────────► STANDBY (after recovery)
Node 2:   REPLICA ─────────────────► LEADER ────► LEADER
Node 3:   REPLICA ──────────────────────────────► REPLICA

4. After Failover

- Node 2 becomes new Leader
- Node 3 remains Replica, changes replication source to Node 2
- HAProxy automatically detects and routes traffic to Node 2
- Node 1 (when recovered) will rejoin as Replica

4.4. Important scenarios

Scenario 1: Planned Switchover

# Admin wants maintenance on Node 1 (Leader)
$ patronictl switchover postgres-cluster

# Patroni will:
1. Pause writing to current Leader
2. Wait for Replica to sync completely (zero lag)
3. Promote Replica → Leader
4. Demote old Leader → Replica
5. Zero data loss, downtime < 5s

Scenario 2: Split-brain Prevention

Situation: Network partition between nodes

etcd quorum (3 nodes):
- Partition A: Node 1, Node 2 (2 nodes = majority)
- Partition B: Node 3 (1 node = minority)

Result:
✅ Partition A: Continues operation, can elect leader
❌ Partition B: Cannot elect leader (insufficient quorum)

→ Prevents 2 leaders existing simultaneously!

Scenario 3: Node Recovery

Node 1 recovers after dying:

1. Patroni starts and reads cluster state from etcd
2. Realizes Node 2 is currently Leader
3. Automatically rejoins as Replica
4. Uses pg_rewind to sync data if there's divergence
5. Begins streaming replication from Node 2

4.5. Configuration timeline (important parameters)

# patroni.yml
bootstrap:
  dcs:
    ttl: 30                    # Leader lease time (30s)
    loop_wait: 10              # Check interval (10s)
    retry_timeout: 10          # Retry time
    maximum_lag_on_failover: 1048576  # Max lag for failover candidate (1MB)

Explanation:

• ttl: 30: Leader must renew lease every 30s, otherwise considered dead
• loop_wait: 10: Patroni checks health every 10s
• Failover trigger: when (ttl - loop_wait) expires → ~20-30s

5. Summary

Key Takeaways

1. High Availability is mandatory for production systems to reduce downtime and data loss
2. Streaming Replication + Automatic Failover is the most popular HA method for PostgreSQL
3. Patroni is the best choice for most modern use cases:
   • Easy setup and maintenance
   • Intelligent automatic failover
   • Powerful REST API
   • Good cloud/K8s integration
4. 3-node architecture with Patroni + etcd provides:
   • Automatic failover (RTO < 30s)
   • Zero data loss with sync replication
   • Split-brain prevention
   • Scalability for read workloads

Homework

1. Calculate downtime for your system with different availability levels (99%, 99.9%, 99.99%)
2. Draw HA architecture for your specific use case (number of nodes, data centers, RTO/RPO requirements)
3. Compare costs between using HA and accepting downtime for your business

Preparation for next lesson

Lesson 2 will dive deep into Streaming Replication - the foundation of PostgreSQL HA:

• Detailed mechanism of WAL operation
• Synchronous vs Asynchronous replication
• Replication slots
• Lab: Manual replication setup

References

• PostgreSQL Official Documentation - High Availability
• Patroni GitHub Repository
• etcd Documentation
• PostgreSQL Streaming Replication
